Building Automation

Systems for building automation (BMS - Building Management Systems) consist of interconnected mechanical and electronic components that monitor temperature, humidity, presence, light intensity, air quality, but also the current position of outdoor blinds, windows and doors .

The control units evaluate the information received and based on algorithms created by commands sent to the respective elements that take action in sub-systems for heating, air conditioning, ventilation, lighting, shading, access to the building and fire safety.

Safe, efficient, and comfortable functioning of partial building automation system is the responsibility of higher-level control system, which is an essential part of customized visualization.

Poseidon is a user-friendly and energy-efficient solution for wireless lighting and shading control within building automation systems. It is designed to be maximally compatible and integrated into higher-level building automation systems supplied by AMiT.

Poseidon can work with lighting systems composed of all common types of lamps such as fluorescent lamps, LED lamps, halogen, incandescent lamps and lamps.

Poseidon is easily scalable and can be used to control one office, the whole floor or the entire building. It brings energy cost savings that can in some cases even exceed 70%.

Software Assistant Poseidon allows easy configuration, remote management and making changes to lighting control based on user requirements and building owners.

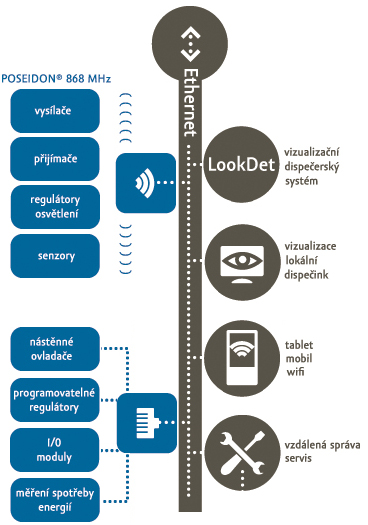

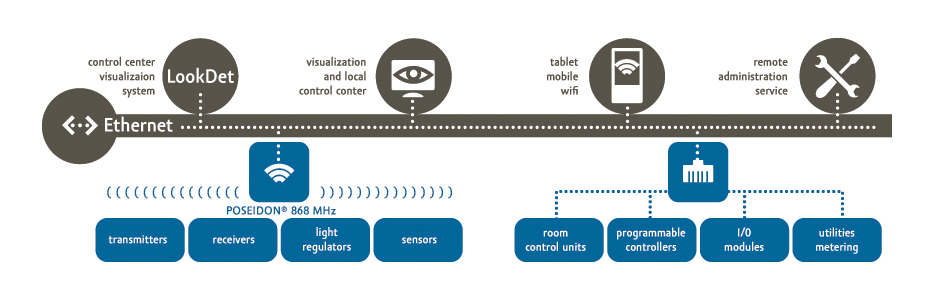

The system consists of the transmitter, receiver, sensors and interfaces.

Transmitters provide the user the ability to control electronic systems. Pressing the button generates a command that is sent to the connected receiver, which performs the desired action - eg. Shine a light or blind pulls. The command is sent from the transmitter using a wireless data transmission.

Receivers are connected to a power circuit and electronic systems used for the direct switching on, off, dimming or regulation. Receivers receive commands from transmitters or sensors in the form of wireless data transmission.

Sensors send updated information about temperature, humidity, lighting and occupancy to a superior system for further processing.

Interface is used for communication between components Poseidon and host systems by AMiT company.

Wall and peripheral drivers are primarily temperature, humidity, pressure, quality of air, lighting, occupancy rooms, etc.. For peripherals for indoor use, are expected aesthetic design solutions.

Programmable controllers are usually focused on the management of specific technological smaller units such as fan coil units, induction beams, air handling units, heating branches, etc. The possibility of free programming applications, these controllers also brings great versatility particular chosen technology and the required functions.

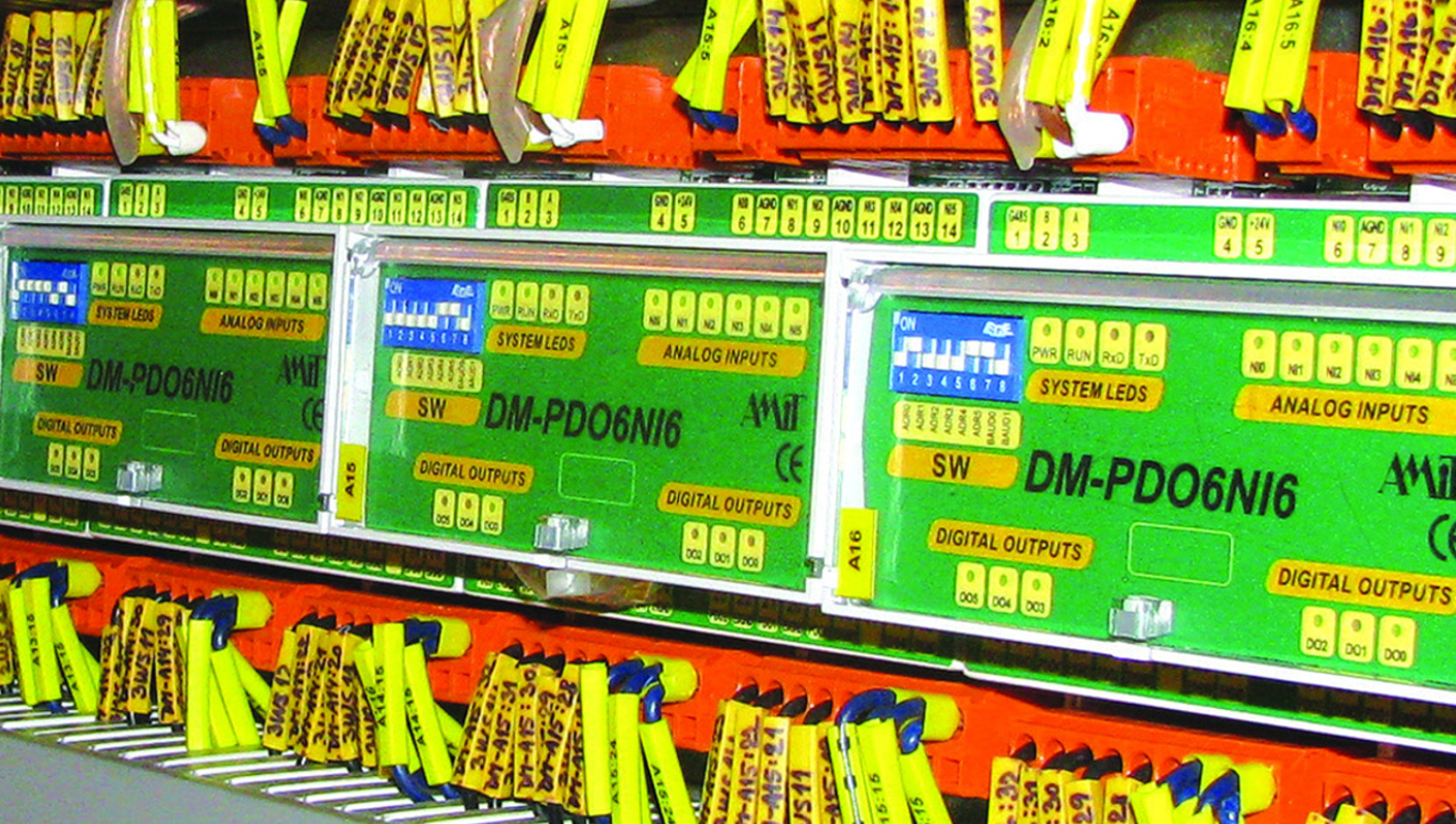

I / O modules Remote input/output modules are used to expand the number of inputs and outputs control systems or controllers and standardized for connecting remote signals, thereby significantly saves cabling costs. By connecting the signals to these modules where the signals arise, moreover increases resistance to possible interference particularly in analog signals. The carrying values to control systems secure communication protocol.

Measurement of energy consumption Electricity meters increasingly popular equipment cabinets and provide with basic measuring the consumption of a comprehensive measurement of the network parameters and the continuous calculation of averages. Electricity meters are designed to measure single-phase, two-phase or three-phase AC power grid and are supplied in a notarised (billing) version as well as analytical, in-house measurements. Electricity meters are equipped with communication ports for data transfer.

Control systems The core management systems are powerful freely programmable processing stations that are ready to tackle any very specific task-driven technology. Thanks to the openness, flexibility and communication skills with the parent and child process stations systems are the backbone of the overall concept of building automation.

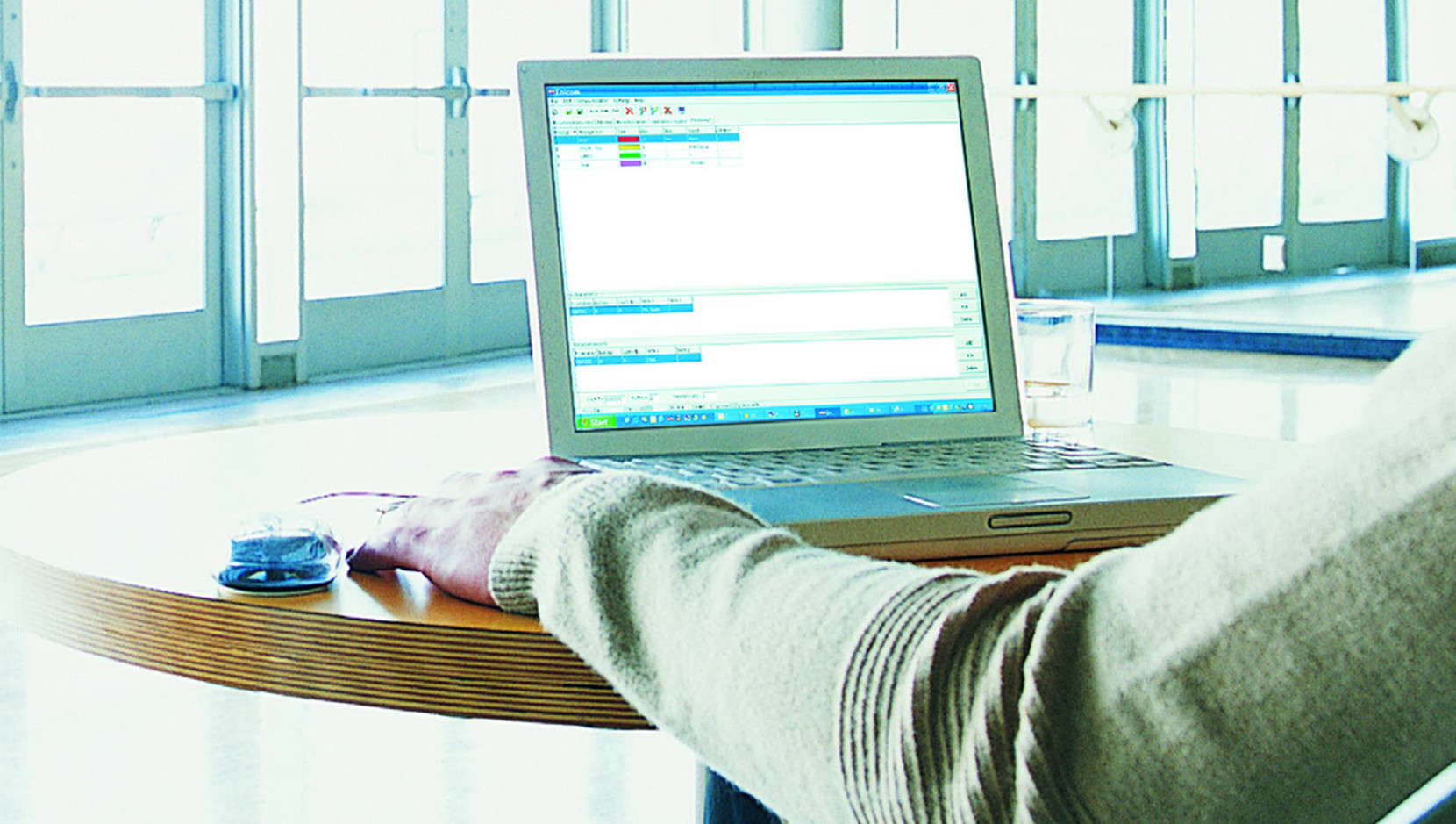

Visual dispatching system LookDet, whose main task is to collect, manage, archive and display actual data from control systems and measuring devices. Emphasis is put on fast, accurate and transparent transfer of all technologies in buildings. This information is intended primarily for facility management, service activities and not least for operators of real estate for the purpose of obtaining the necessary balance. LookDet represents a completely new concept in supervisory control and control. Its essence is the "cloud" solution - a powerful program, environmental parameters and measured data is placed on a secure server and users and administrators enough to work a standard Web browser on an ordinary computer, tablet or smartphone.

Building automation catalogue 2015

ENIKA.CZ company presentation

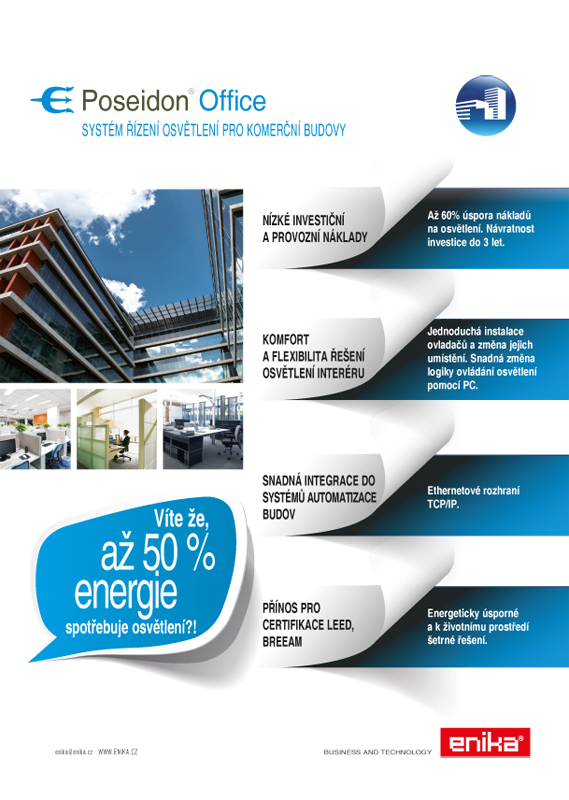

Lighting management system for office buildings

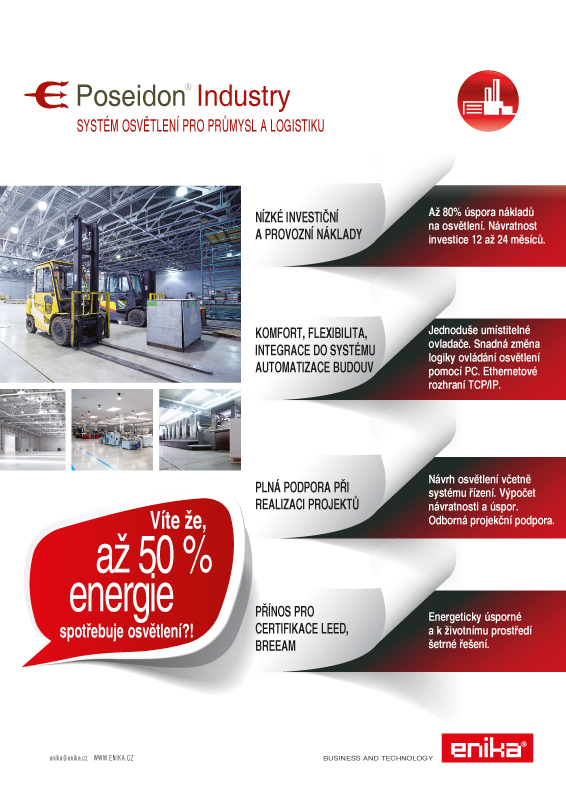

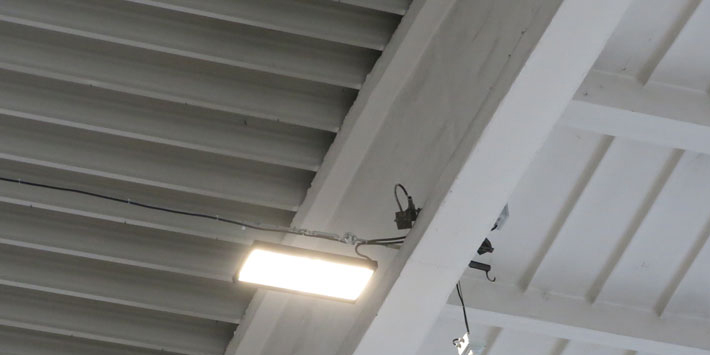

Lighting system for industry and logistics
